PWM Solar Charge Controller

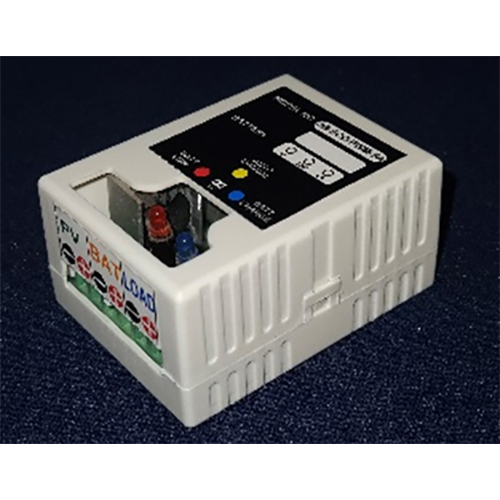

• Application
• Other, Solar charging for small 12V lead-acid batteries

• Color
• White

• Dimension (L*W*H)
• Approx. 85mm x 65mm x 40mm

• Efficiency
• Above 95%

• Features
• LED indicators, automatic battery voltage detection, short circuit & reverse polarity protection, plug & play connection

• Input Voltage
• Solar panel 12V DC

• Installation Type
• Other, Wall or panel-mounted

• Maintenance Type
• Low maintenance

• Material
• High-Quality ABS Plastic Casing

• Max System Voltage
• 12V system

• Max Voltage
• 15V (charging cut-off)

• Number of Cells
• 1 charger per battery circuit

• Operating Temperature
• -10C to 50C

• Output Voltage
• 12V DC

• Power
• 5A maximum charge current

• Product Type
• Other, PWM Solar Charge Controller

• Size
• Compact module

• Switch Mode
• Other, PWM (Pulse Width Modulation)

• Type Of Technology
• Other, PWM Charging Technology

• Weight
• Approx. 120g

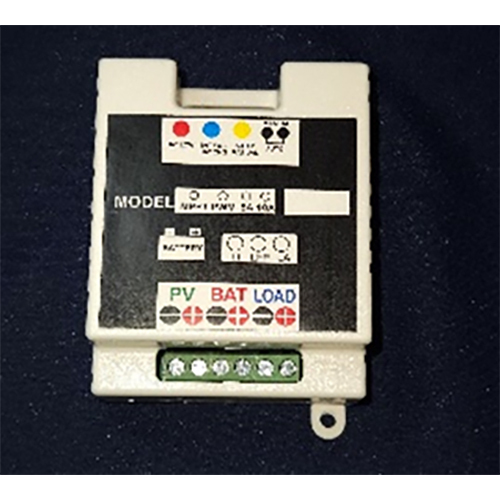

• Application
• Other, Solar Home System, Street Lighting, DC Load Management

• Color
• White / Black

• Dimension (L*W*H)
• Approx. 120 x 100 x 35 mm

• Efficiency
• Up to 98%

• Features
• LED Indication, Reverse Polarity Protection, Short Circuit Protection, Overcharge Protection, Easy Installation, Lightweight

• Input Voltage
• 12V / 24V DC

• Installation Type
• Other, Wall Mount / Panel Mount

• Maintenance Type
• Maintenance Free

• Material
• ABS Plastic Body

• Max System Voltage
• 24V DC

• Max Voltage
• 24V

• Operating Temperature
• -20C to 55C

• Output Voltage
• 12V / 24V (auto-select)

• Power
• 10A

• Product Type
• Other, PWM Solar Charge Controller

• Size
• Compact

• Switch Mode
• Other, PWM (Pulse Width Modulation)

• Type Of Technology
• Other, Solid State Electronics

• Weight
• Approx. 150g

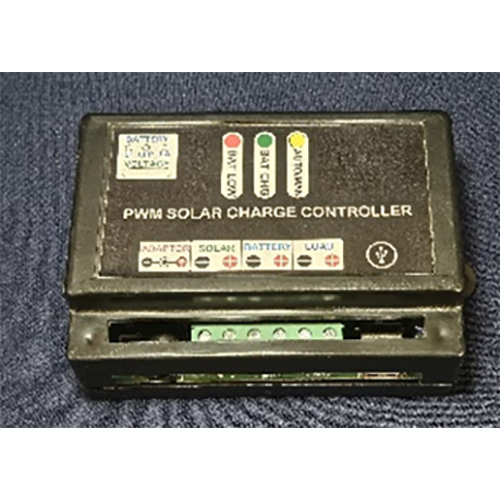

• Application
• Other, Solar Charging Systems, Lighting Systems, Small Solar Setups

• Color
• Black

• Dimension (L*W*H)
• Approx. 13 x 7 x 3.5 cm

• Efficiency
• 98% Charging Efficiency

• Features
• USB output for charging, LED status indicators, Auto voltage detect, Overload/Short circuit protection

• Input Voltage
• 12V/24V from Solar Panel

• Installation Type
• Other, Panel/DIN rail Mountable

• Maintenance Type
• Low maintenance

• Material
• ABS Plastic Housing

• Max System Voltage
• 24V

• Max Voltage
• 12V/24V Auto Detection

• Number of Cells
• Suitable for 12V or 24V Lead Acid Batteries

• Operating Temperature
• -20C to 50C

• Output Voltage
• 5V (USB), 12V/24V (DC output)

• Power
• Up to 120W (at 12V), Up to 240W (at 24V)

• Product Type
• Other, PWM Solar Charge Controller with USB

• Size
• Compact

• Switch Mode
• Other, PWM (Pulse Width Modulation)

• Type Of Technology
• Other, PWM Charge Control

• Weight
• Approx. 120g

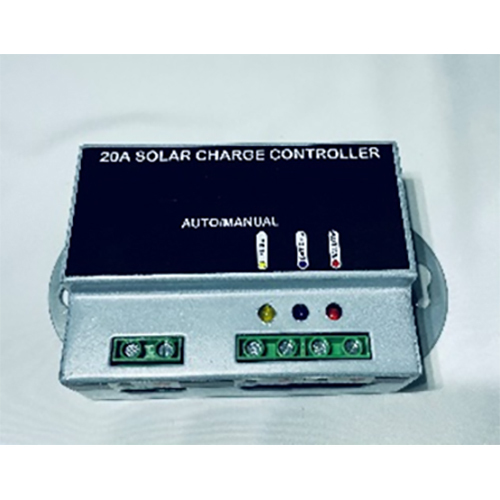

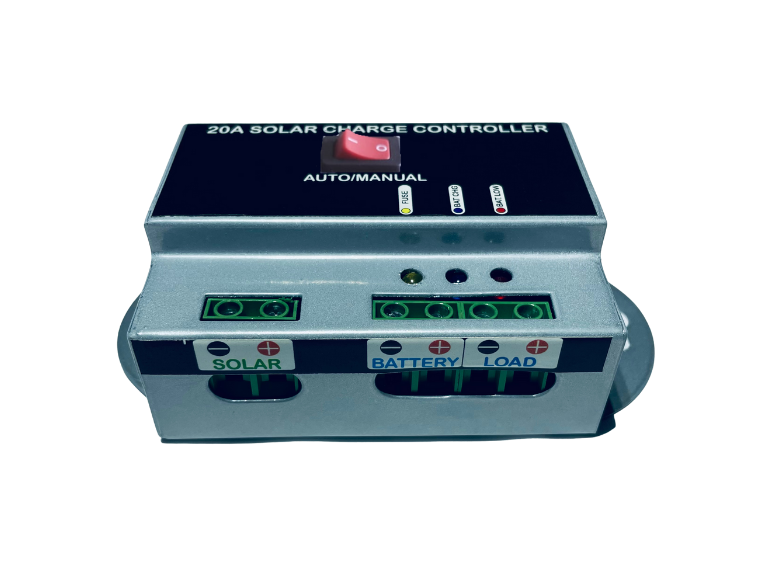

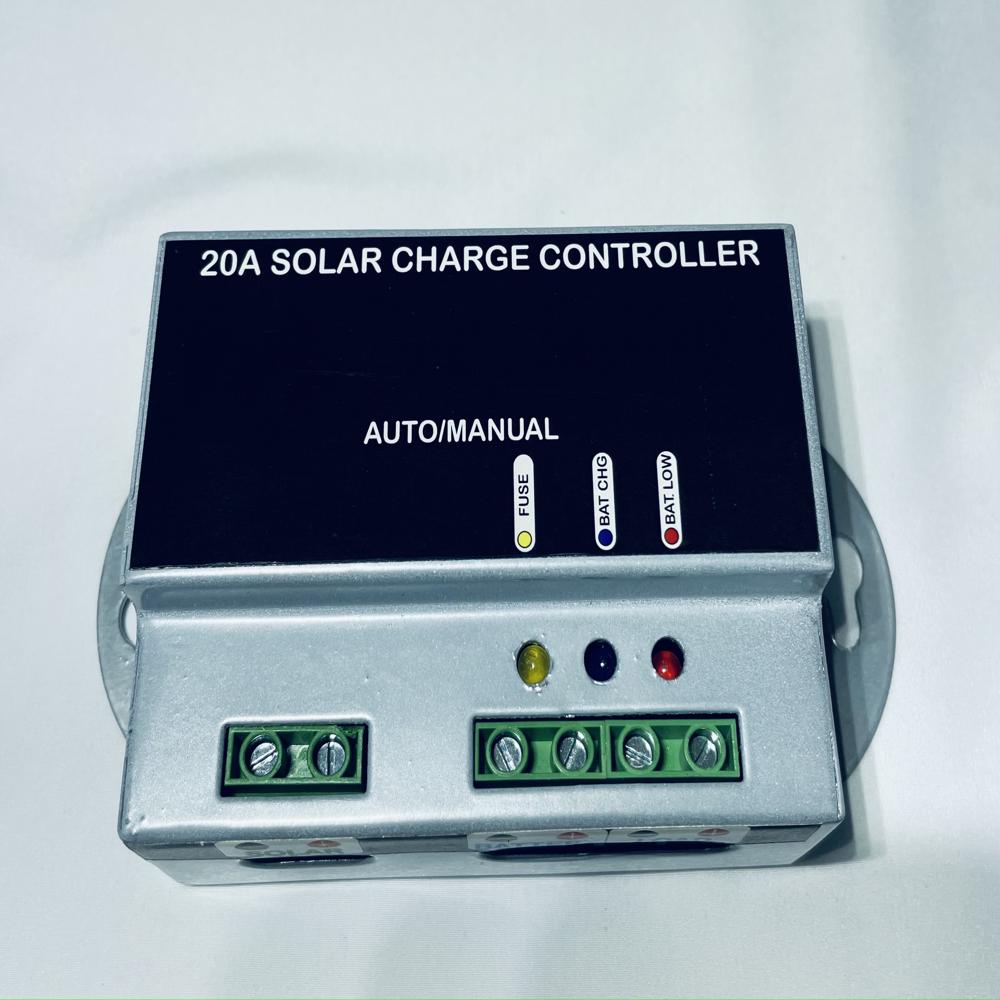

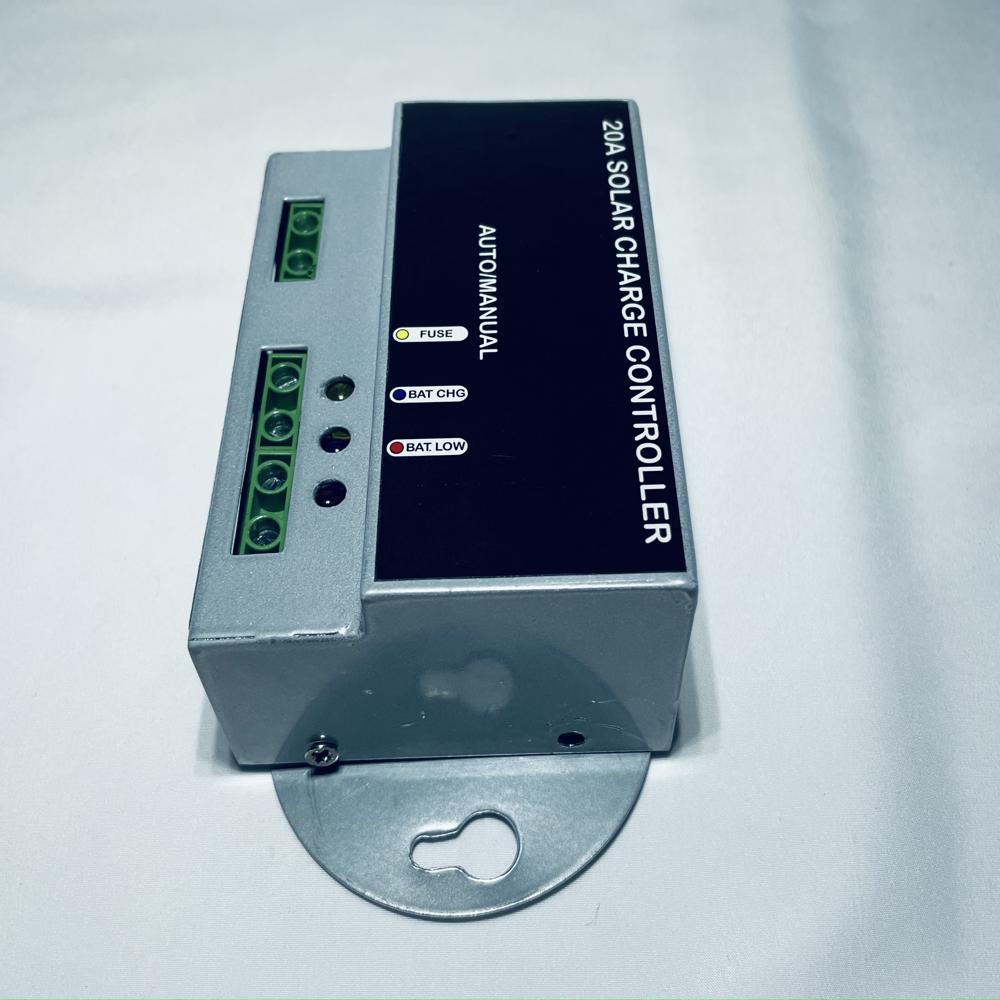

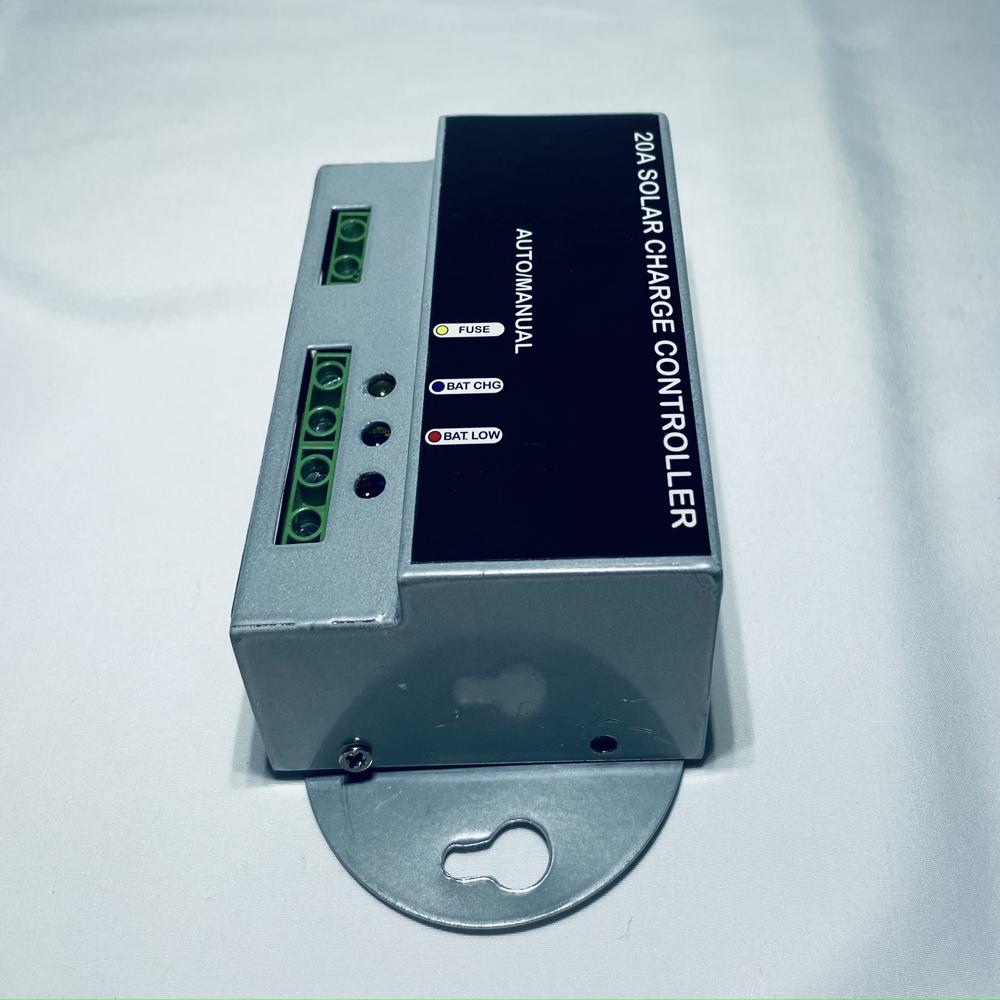

• Color
• Siliver

• Dimension (L*W*H)
• 80X65X40 Millimeter (mm)

• Input Voltage
• 12V Volt (V)

• Installation Type
• Other

• Material
• ABS

• Max System Voltage
• 12 Volt (V)

• Operating Temperature
• 0 to 85C Celsius (oC)

• Power
• 12V - 400W Watt (w)

• Product Type
• Other

• Switch Mode
• Other

• Type Of Technology
• Other

• Warranty
• 5 Years

• Weight
• Aprox 700 Grams (g)
