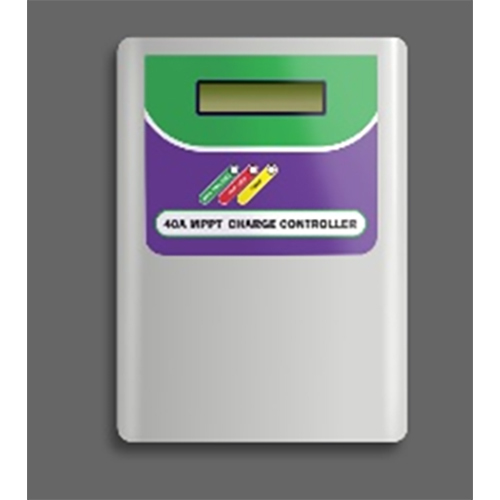

Send Inquiry40A MPPT Solar Charge Controller
Price 5100 INR/ Piece
MOQ : 2 Pieces
40A MPPT Solar Charge Controller Specification
- Input Voltage
- 12V/24V/48V DC Auto Recognition
- Maintenance Type
- Low Maintenance
- Features
- LCD Display, Multi-stage Charging, Reverse Polarity Protection, Overload Protection, Short Circuit Protection
- Efficiency
- 98% Peak
- Product Type
- MPPT Solar Charge Controller
- Material
- ABS Plastic / Metal Enclosure
- Power
- 40A Maximum Charging Current
- Operating Temperature
- -20C to 55C
- Max Voltage
- 100V DC (PV Input)
- Max System Voltage
- 100V DC
- Output Voltage
- 12V/24V/48V Auto Recognition
- Cable Length
- Customizable, Not Included by Default
- Switch Mode
- MPPT (Maximum Power Point Tracking)
- Size
- Standard
- Dimension (L*W*H)
- Approx. 210mm x 160mm x 80mm
- Color
- White & Green with Purple Label
- Weight
- Approx. 1.2 kg
- Application
- Solar Photovoltaic Systems
- Type Of Technology
- MPPT Technology
- Installation Type
- Wall Mounted
- Display Type
- Digital LCD Display
- Over Charge Protection
- Yes
- Short Circuit Protection
- Yes
- Communication Interface
- RS485 (optional for monitoring)
- Mounting Type
- Wall or Panel Mounted
- Charging Stages
- 3-stage (Bulk, Absorption, Float)
- Battery Type Supported
- Lead Acid, Gel, Flooded, AGM, Lithium
- Reverse Current Protection
- Yes
- Self Consumption
- <15mA (Standby)
- Humidity Range
- 0-95% Non-Condensing
40A MPPT Solar Charge Controller Trade Information
- Minimum Order Quantity
- 2 Pieces
- Supply Ability
- 500 Pieces Per Month
- Delivery Time
- 7 Days
